Tamiya Konghead 6X6 (G6-01) 58646

Dominate the Dirt

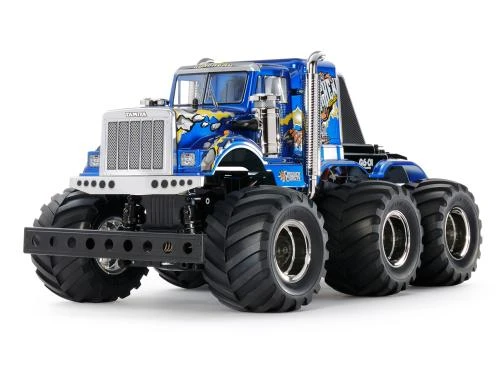

This R/C model assembly kit creates the Konghead 6×6. With its big sleeper cab, flat nose and radiator grille, its polycarbonate body takes inspiration from U.S. trailer heads. Metal-plated air cleaner and muffler parts give an authentic finish. Marking stickers are included to decorate the body with style. The new G6-01 chassis is a newly-designed 6WD unit that can take on slopes of up to 40 degrees. See below for much more information!

Fun, Innovative & Great Performance!

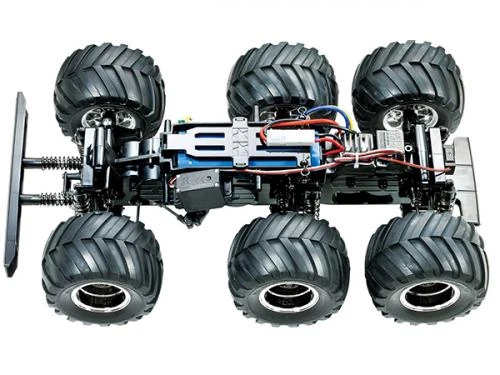

The fun G6-01 chassis is based around a tough, slimline monocoque frame and offers excellent off-road performance thanks to a 6-wheel drive system. Power is provided by a motor behind the front wheels, and transmitted to front, center and rear wheels via gears. The gearbox is sealed to protect from dust and debris, and integrated into the frame; it has built-in front, center and rear differential gears to provide smooth cornering. 6-wheel double wishbone suspension is fitted with friction dampers, while chrome-plated deep rim wheels are paired with 113mm diameter tires. A 2-piece steering tie-rod setup utilizes the servo on the left for excellent response. With suspension reassembly and a separately-sold transmitter with 4WS function and R/C equipment, the rear wheels can be made steerable.



– Double wishbone suspension is paired with friction dampers for excellent off-road performance.


– Smooth handling thanks to the 2-piece steering tie-rod and steering servo positioned on the left.


– The motor powers three differential gears inside the monocoque, in a gear-driven 6WD setup.

Specifications

– Length: 453mm, Width: 270mm, Height: 234mm
– Wheelbase: 173mm + 126mm
– Tread: 200mm (Front, Center and Rear)
– Tire Width/Diameter: 68mm/113mm
– Monocoque Frame
– Gear-Driven 6WD
– 3-Bevel Differential Gears
– 2-Piece Steering Tie-Rod
– 6-Wheel Independent Double Wishbone Suspension
– Gear Ratio = 18.03:1
– Type 540 Motor
– Requires an Electronic Speed Controller (sold separately)

Separately Required Items

– 2-Channel R/C Unit with ESC
– Battery Pack & Charger
– R6/AA/UM3 batteries for transmitter
