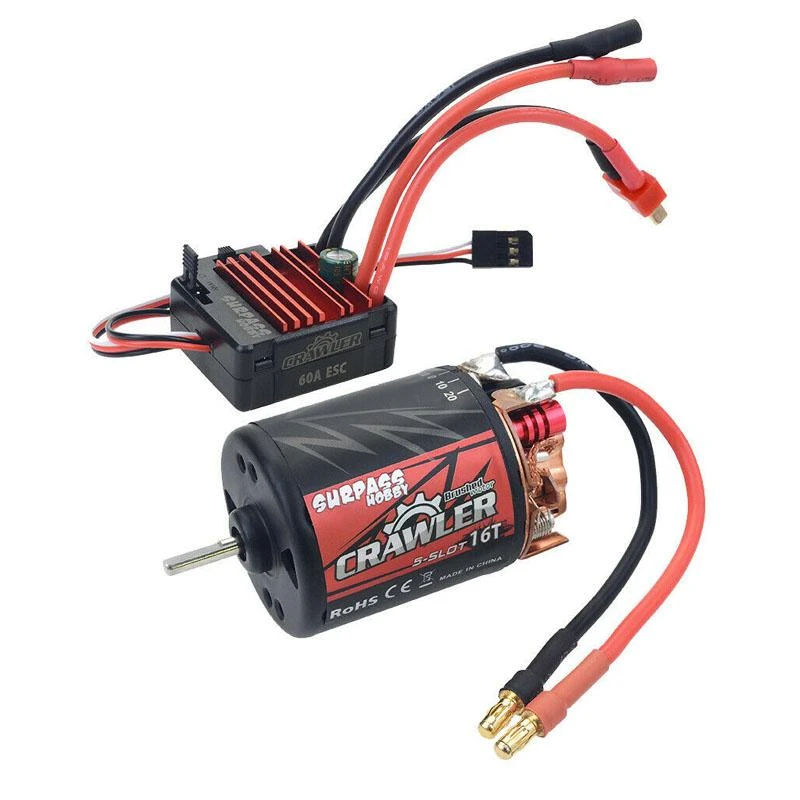

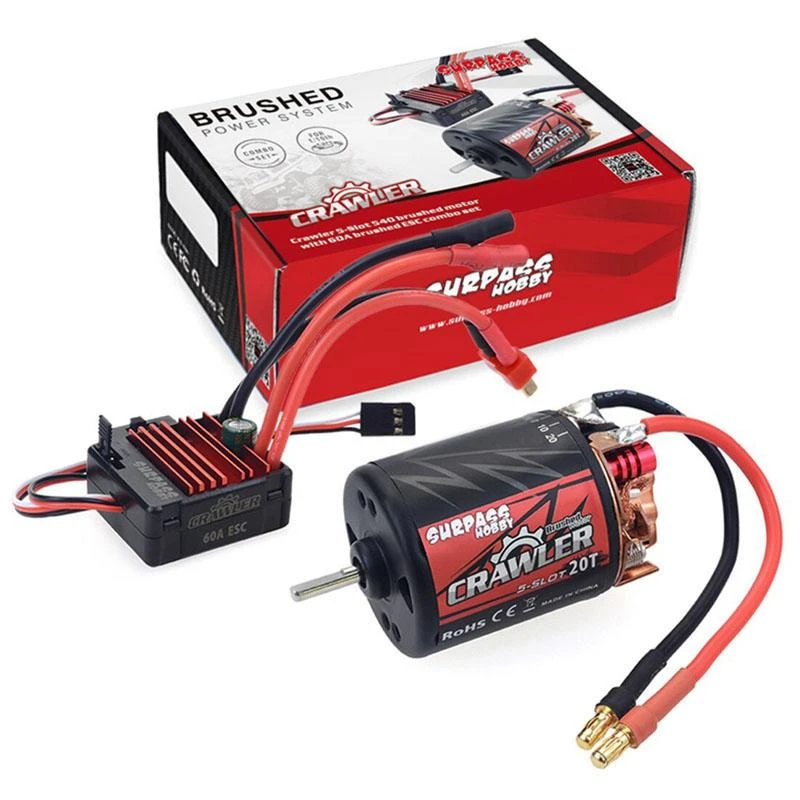

Surpass Scale Crawler Combo 5-Slot 16T 1850kv Brushed Motor And 60amp Speed Controller

Features

• Specially designed brushed motor/speed controller combo for RC Scale/Crawler car with excellent throttle linearity and driving feel.
• Speed controller has great current capability, excellent heat dissipation.
• Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection /
• Easily programmed and compatible with pocket-sized program card
• Cont. Current/ Burst Current：60A/320A.
• Resistance：0.0014ohm
• Motor Type: brushed motor 16 turn 5 slot approx 13700 RPM
• Battery:2-3s Lipo 4-9 cells NiMH
• 7.4v BEC output for maximum servo speed and torque (make sure servo is compatible)

• High Purity Copper Windings Maximizes Efficiency
• High RPM Oversized Bearings
• Precision balanced rotor,smoothness for best reliability and maximum RPM
• Removable/Replaceable Rotor
• Rebuildable with an easily accessible commutator and replaceable brushes and springs
• High strength magnets for unmatched brush-motor performance
• Specifically designed for R/C vehicles that require precise movement control
• Excellent torque and long-run times
• Direct-Solder Wiring Tabs for flexible soldering options

Motor Specification

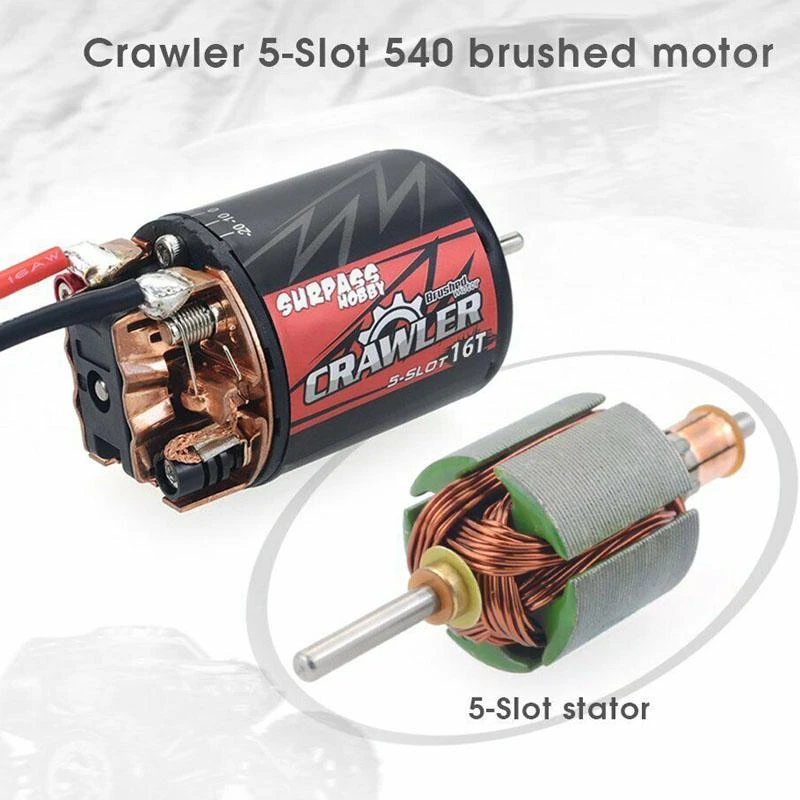

• 16 Turn 5 Slot armature
• Shaft diameter 3.175 mm (standard 540 motor size)
• Torque 2300 g.cm @7.4v
• Off load RPM 13700 rpm +/- 10% @7.4v
• Off load current 1.06 – 1.5A @7.4v
