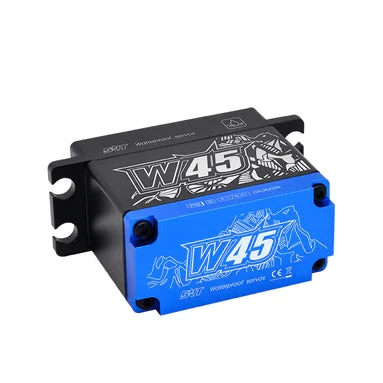

SRT W45 SERVO 45KG – 0.18 AT 8.4V SRT-W45

KEY FEATURES

• Ideal for 1/10 on road and 1/8 off road scale applications
• Intermediate aluminium case
• NMB dual main bearings
• Superior waterproof
• 25T output shaft
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: Titanium & Steel
• control system: pulse width control
• working frequency: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.20 sec/60 degrees at no load
• operating speed (7.4v): 0.19 sec/60 degrees at no load
• operating speed (8.4v): 0.18 sec/60 degrees at no load
• stall torque (6.0v): 34.0kg.cm (472.2 oz/in)
• stall torque (7.4v): 40.0kg.cm (555.5 oz/in)
• stall torque (8.4v): 45.0kg.cm (624.9 oz/in)
• potentiometer drive: direct drive
• dimensions: 40.7×20.5×38.6 mm /1.60×0.81×1.52 in
• weight: 82.5g (2.91 oz)
• connector wire length: jr 360 mm
