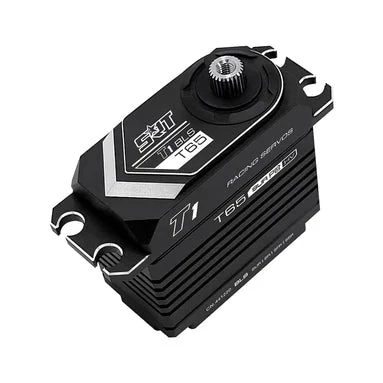

SRT T65 SERVO 55KG – 0.065 AT 8.4V SRT-T65

KEY FEATURES

• Ideal for 1/8 on road and 1/5 off road scale applications
• Superior Holding Torque
• Incredible efficiency and low power consumption
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminium case for exceptional cooling
• Programmable High torque Brushless servo
• SSR mode compatible
• 25T output shaft
• 2 μsec Dead Band
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Gear Material: Steel
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.092 sec/60 degrees at no load
• operating speed (7.4v): 0.074 sec/60 degrees at no load
• operating speed (8.4v): 0.065 sec/60 degrees at no load
• stall torque (6.0v): 39.0kg.cm (541.6 oz/in)
• stall torque (7.4v): 45.0kg.cm (625.0 oz/in)
• stall torque (8.4v): 55.0kg.cm (763.8 oz/in)
• potentiometer drive: direct drive
• dimensions: 40.7×20.5×39.0 mm /1.60×0.81×1.54 in
• weight: 83.0g (2.93 oz)
• connector wire length: jr 300 mm
