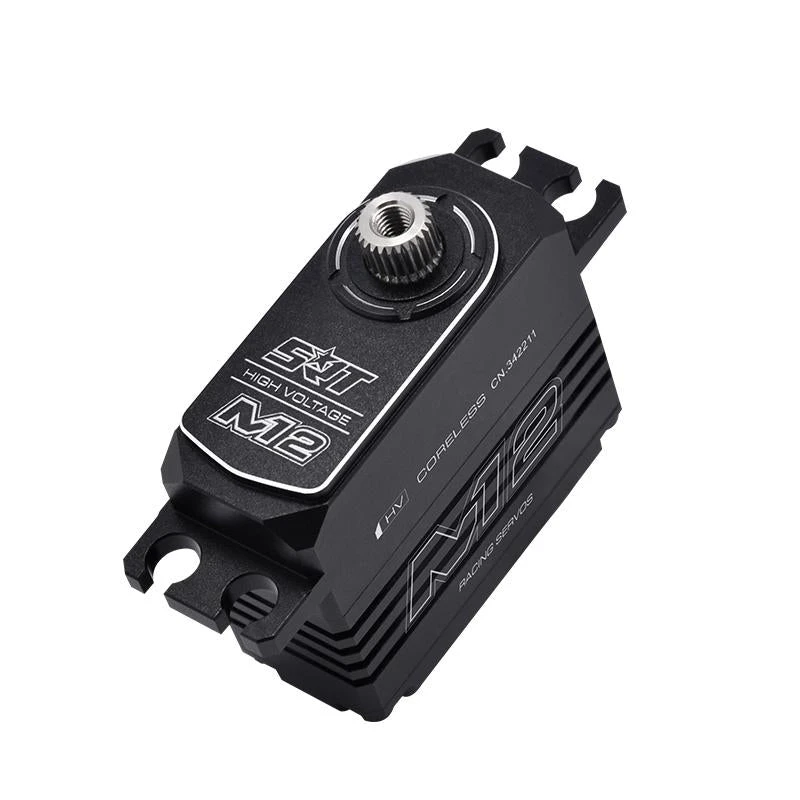

SRT M-12 Pan Car Servo 6.5KG – 0.08 Sec At 6V Metal Case

KEY FEATURES

• special 1/12 pancar servo, compatibly apply to 500 helicopter & Mono1 RC boat
• Incredible efficiency and low power consumption
•  2 μsec Dead Band
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: Copper & Aluminum
• control system: pulse width control
• working frequence: 1520μs / 333hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.08 sec/60 degrees at no load
• operating speed (7.4v): 0.075 sec/60 degrees at no load
• operating speed (8.4v): 0.065 sec/60 degrees at no load
• stall torque (6.0v): 6.5kg.cm (90.3 oz/in)
• stall torque (7.4v): 9.5kg.cm (131.9 oz/in)
• stall torque (8.4v): 11.0kg.cm (152.8 oz/in)
• potentiometer drive: direct drive
• dimensions: 35.0×15.1×29.5 mm /1.38×0.59×1.16 in
• weight: 35.0g (1.23 oz)
• connector wire length: jr 180 mm
