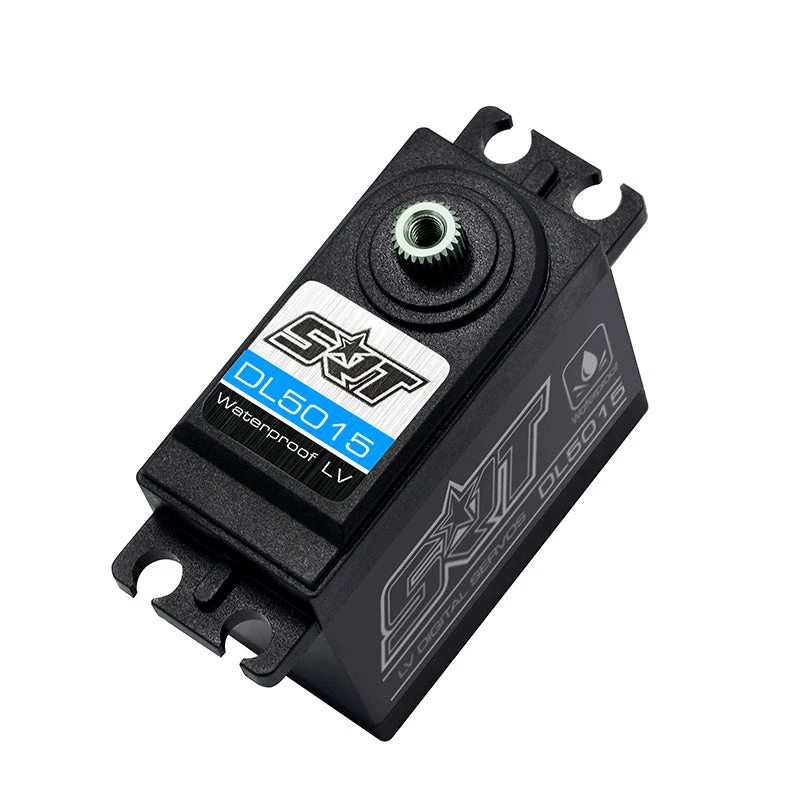

SRT DL5015 LV DC Servo 12KG – 0.13 Sec At 6v – Semi M-Case

KEY FEATURES

• Ideal for 1/10 on road and 1/8 off road scale applications
• Intermediate aluminum case
• NMB dual main bearings
• Superior waterproof
• 25T output shaft
• 1-Year Limited Warranty



PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: DC
• Gear Type: Metal
• Gear Material: Titanium & Alu
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc4.8-6.0v
• operating temperature range: -10 to + 60 degree
• operating speed (4.8v): 0.15 sec/60 degrees at no load
• operating speed (6.0v): 0.13 sec/60 degrees at no load
• stall torque (4.8v): 12.0kg.cm (166.6 oz/in)
• stall torque (6.0v): 15.0kg.cm (208.3 oz/in)
• potentiometer drive: direct drive
• dimensions: 40.7×20.5×39.5 mm /1.6×0.8×1.55 in
• weight: 65.0g (2.29 oz)
• connector wire length: jr 250 mm
