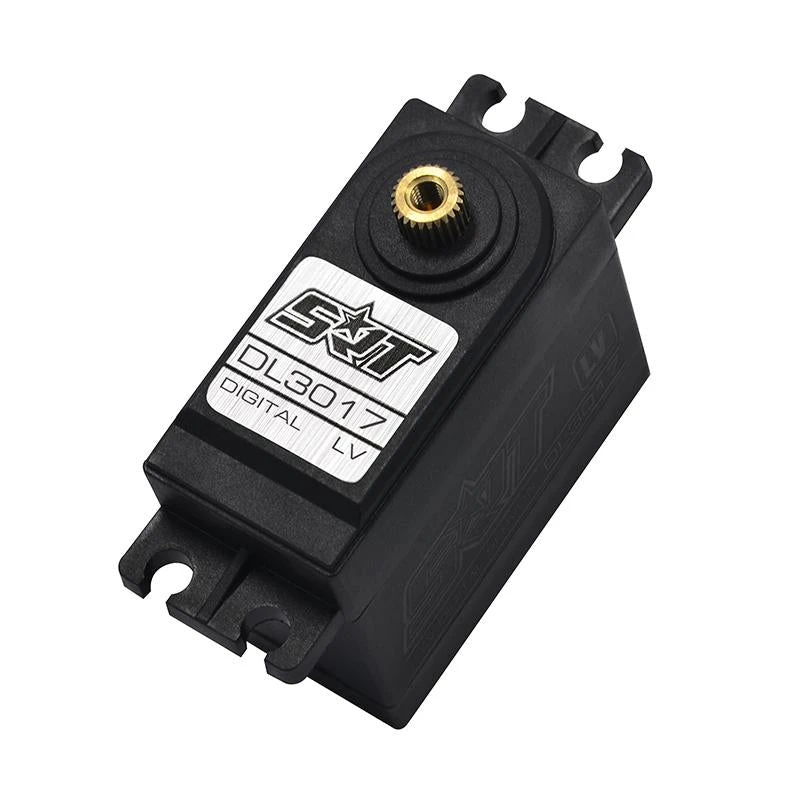

SRT DL3017 LV DC Servo 15.5KG – 0.17 Sec At 6v – Composite Case

• Ideal for 1/10 on road and 1/8 off road scale applications,  as well as large scale airplanes and jets
• incredible efficiency and low power consumption
• 2 μsec Dead Band
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: DC
• Gear Type: Metal
• Gear Material: Titanium & Copper
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc4.8-6.0v
• operating temperature range: -10 to + 60 degree
• operating speed (4.8v): 0.17 sec/60 degrees at no load
• operating speed (6.0v): 0.15 sec/60 degrees at no load
• stall torque (4.8v): 15.5kg.cm (215.2 oz/in)
• stall torque (6.0v): 17.0kg.cm (236.0 oz/in)
• potentiometer drive: direct drive
• dimensions: 40.7×20.5×39.5 mm /1.6×0.8×1.55 in
• weight: 63.0g (2.22 oz)
• connector wire length: jr 250 mm
