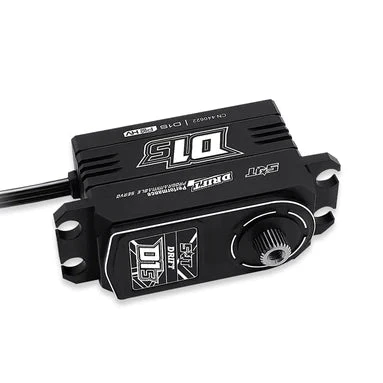

SRT D1S SERVO 18.5 KG – 0.08 AT 8.4V SRT-D1S

KEY FEATURES

• Ideal for 1/10 drift car applications
• incredible efficiency and low power consumption
• Titanium & Steel gears for precision and durability
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminium case for exceptional cooling
• SSR mode compatible
• 2 μsec Dead Band
• Superior Holding Torque
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: Titanium & Steel
• control system: pulse width control
• working frequency: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.10 sec/60 degrees at no load
• operating speed (7.4v): 0.095 sec/60 degrees at no load
• operating speed (8.4v): 0.08 sec/60 degrees at no load
• stall torque (6.0v): 14.0kg.cm (194.4 oz/in)
• stall torque (7.4v): 16.5kg.cm (229.1 oz/in)
• stall torque (8.4v): 18.5kg.cm (256.9 oz/in)
• potentiometer drive: direct drive
• dimensions: 41.0×20.0x27.3 mm /1.61×0.79×1.07 in
• weight: 58.0g (2.05 oz)
• connector wire length: jr 80 mm
