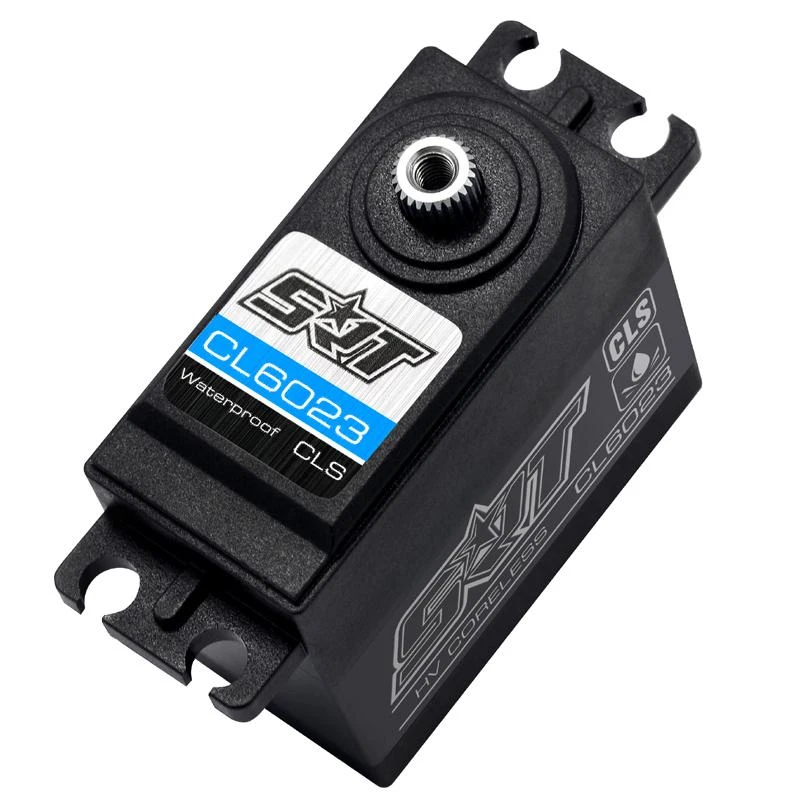

SRT CL6023 HV CL Servo 23KG – 0.12 Sec At 6v – Semi M-Case

KEY FEATURES

• Ideal for 1/10 on road and 1/8 off road scale applications
• Titanium & Steel gears for precision and durability
• Intermediate aluminum case
• NMB dual main bearings
• Superior waterproof
• 25T output shaft
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: Titanium & Steel
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc4.8-6.0v
• operating temperature range: -10 to + 60 degree
• operating speed (4.8v): 0.14 sec/60 degrees at no load
• operating speed (6.0v): 0.12 sec/60 degrees at no load
• stall torque (4.8v): 18.0kg.cm (250.0 oz/in)
• stall torque (6.0v): 23.0kg.cm (319.46 oz/in)
• potentiometer drive: direct drive
• dimensions: 40.7×20.5×38.5 mm /1.6×0.8×1.51 in
• weight: 75.0g (2.65 oz)
• connector wire length: jr 250 mm
