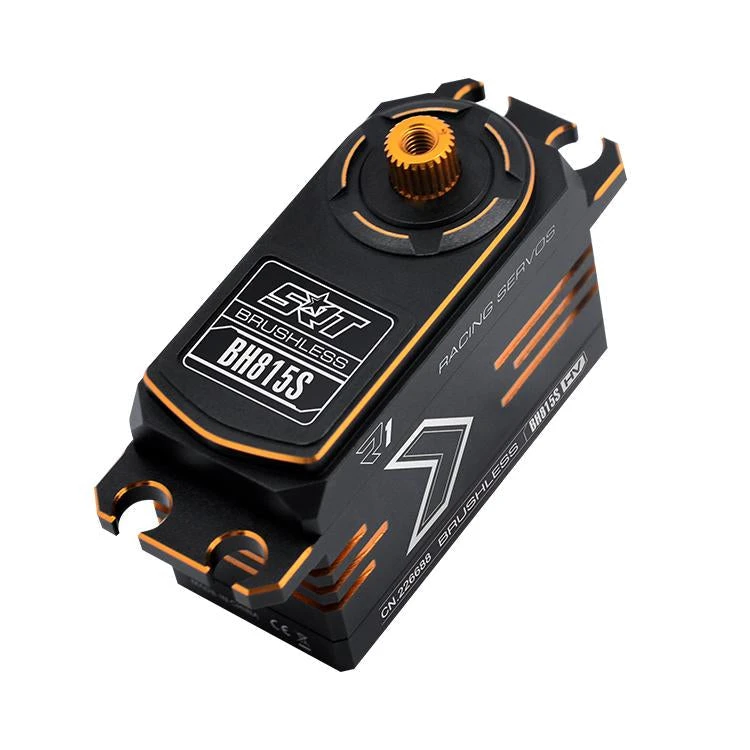

SRT BH815S 1/10th On Road Brushless Servo

KEY FEATURES

& Unique Mechanic Design
& incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& SSR mode compatible
& 2 ?sec Dead Band
& Superior Holding Torque
& 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520?s / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.065 sec/60 degrees at no load
operating speed (7.4v): 0.055 sec/60 degrees at no load
operating speed (8.4v): 0.050 sec/60 degrees at no load
stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive
dimensions: 41.0×20.0x26.4 mm /1.61×0.79×1.04 in
weight: 52.0g (1.83 oz)
connector wire length: jr 80 mm
