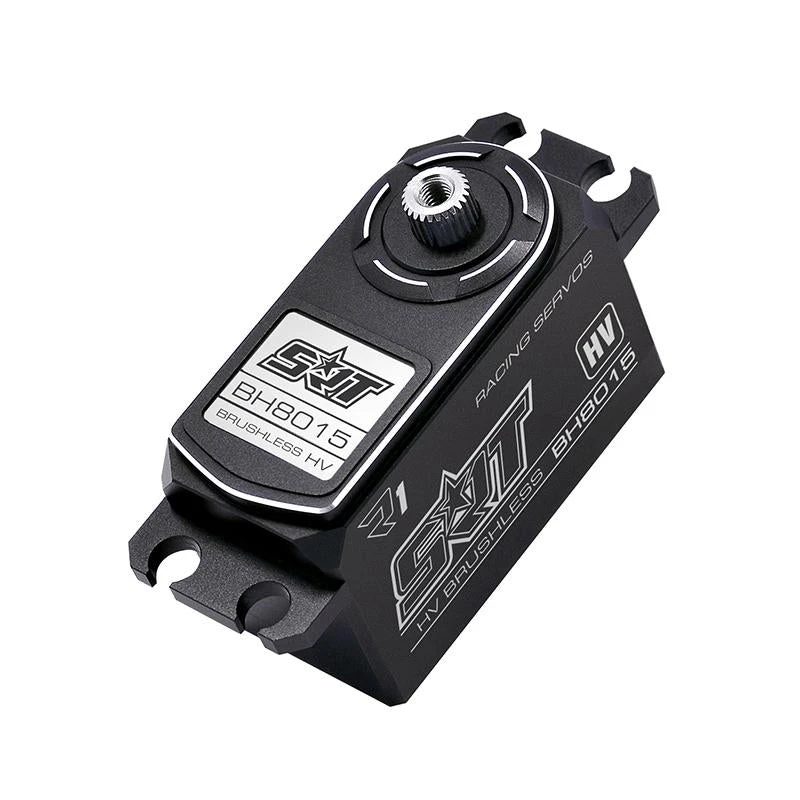

SRT BH8015 HV BL Servo 10KG – 0.065 Sec At 6v – Metal Case

KEY FEATURES

• Unique Mechanic Design
• incredible efficiency and low power consumption
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminum case for exceptional cooling
• HD 4096 Resolution
• 2 μsec Dead Band
• Superior Holding Torque
• 1-Year Limited Warranty



PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Gear Material: Titanium & Alu
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.065 sec/60 degrees at no load
• operating speed (7.4v): 0.055 sec/60 degrees at no load
• operating speed (8.4v): 0.050 sec/60 degrees at no load
• stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
• stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
• stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
• potentiometer drive: direct drive

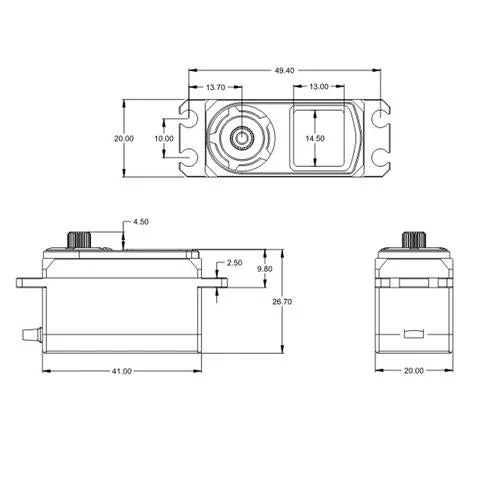

• dimensions: 41.0×20.0x26.4 mm /1.61×0.79×1.04 in
• weight: 52.0g (1.83 oz)
• connector wire length: jr 180 mm
