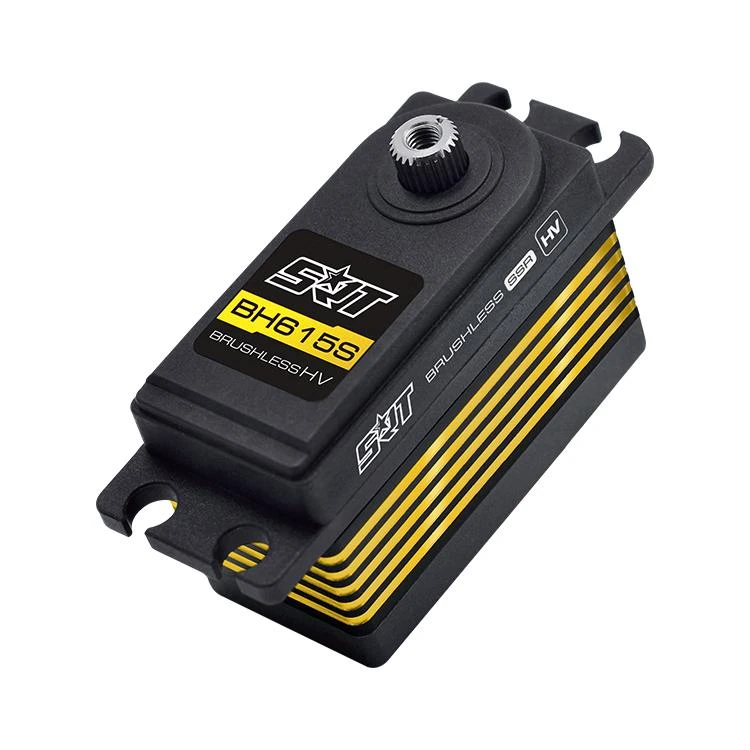

SRT BH615S 1/10th On Road Brushless Servo
Original price was: $92.00.$64.40Current price is: $64.40.
- Shop with Confidence
- Your needs, our top priority.
- The quality you expect, the service you deserve.
- Nature-friendly materials, for a better planet.
KEY FEATURES
& Ideal for 1/10 on road applications
& incredible efficiency and low power consumption
& Aluminum case for good heat dissipation
& NMB dual main bearings
& SSR mode compatible
& 25T output shaft
& 1-Year Limited Warranty
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520?s / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.062 sec/60 degrees at no load
operating speed (7.4v): 0.052 sec/60 degrees at no load
operating speed (8.4v): 0.045 sec/60 degrees at no load
stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive
dimensions: 41.0×20.0x26.4 mm /1.61×0.79×1.04 in
weight: 43.0g (1.52 oz)
connector wire length: jr 180 mm
