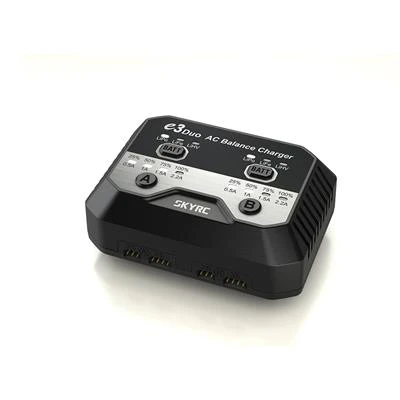

SKY RC E3 DUO AC CHARGER SK-100164

The next evolution of SkyRC’s successful line of professional and economic chargers is here with the e3 Duo dual 2.2A balance charger.

e3 Duo comes ready to charge 2-3cells LiPo, LiFe and LiHV batteries in balance mode in separate channels at 20W each, and the max charge current can reach up to 2.2A. Four kinds of charge current 0.5A/1A/1.5A/2.2A deliver flexibility to the battery of different capacities.

Efficiency Multiplied With Duo
With each charging channel programmed and operated independently, e3 Duo allows you to charge two batteries simultaneously, and it will intelligently and automatically charge the packs at once to their maximum capacity. On top of it, the packs being charged do not even necessarily have the same configuration or be of the same chemical type.

Intuitive Operation

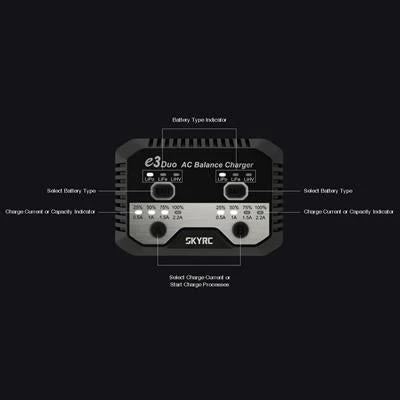

e3 Duo allows choosing battery type & charge current for each channel separately by buttons. Even if it is the first programmable charger, you’ll find using is a breeze: you can charge only through balance ports directly is. It comes natively with separate 2cells & 3cells balance port to avoid accidental wrong connection.

Specifications

Size and Weight

Case Material: Plastic
Case Size: 108 x 76 x 50mm
Weight: 500g

Input Voltage:100-240V
Battery Type: LiPo/LiFe/LiHV
Cell Count: 2-3 CELLS
Charger Current: 0.5A/1A/1.5A/2.2A

Cell Terminate Voltage:
LiPo 4.2V±0.02V
LiFe: 3.6V±0.02V
LiHV: 4.35V±0.02V

Circuit Power: 20Wx2
Current Drain for Balancing Max:200mA

Supplied with UK 3 pin input lead.
