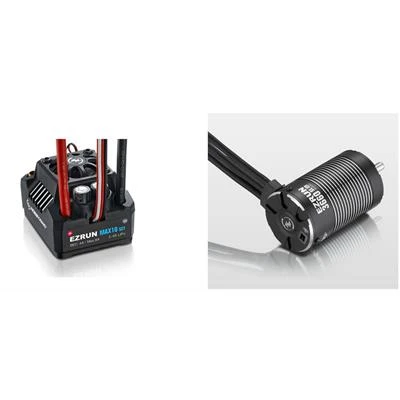

Hobbywing EZRUN – COMBO – MAX10 SCT – 3660SL – 3200KV HW38010200

Hobbywing Max10 SCT with 3660SL – 3200KV Motor.

Best suited for 1/10th SCT, Trucks and Monster Trucks.

High Reliability & Durability
Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

Great Flexibility & Versatility
With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain.
The user will have the choice of adjusting the ESC parameters as per his preference and ability.

Advanced and Secure Electronic Switch
The MAX10 SCT features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

Innovative Filter Capacitor Thermal Protection
The filter capacitor thermal protection first implemented in the MAX10 SCT will effectively protect capacitors from exploding and causing irreversible damage to the ESC due to overload.

Regular Firmware Updates Free of Charge
You can upgrade the MAX10 SCT with the HobbyWing USB LINK software, a multifunction LCD program box and a laptop. HobbyWing updates its ESC firmware regularly giving you upgraded features more often when available.

Wide Applicability
This MAX10 SCT ESC is applicable to various 1/10th scale vehicles like trucks, short-course trucks, monster trucks, and etc.

Type
Scale – 1/10th
Brushed/Brushless – BL
Sensored/Sensorless – SL
Waterproof – Yes

Specifications
Cont./Peak Current – 120A/760A
Input – 2-4S LiPo/6-12 Cells NiMH
BEC Output – Switch Mode:6V/7.4V,3A

Wires & Connectors
Input Wires – Red-12AWG-200mm*1/Black-12AWG-200mm*1
Output Wires – Black-12AWG-200mm*3
Input Connectors – No
Output Connectors – 4.0 Bullet Connectors (Female)
(Note: All the wire length above is the original length not the length you see from the outside.)

Fan
Size – 25.0×25.0x10.0mm
Voltage Range – 5-7.4V
Powered by – Powered by BEC

ESC Programming via
SET Button on ESC – Supported
LED Program Box – Supported
LCD Program Box – Supported
WiFi Module – Supported
Program Port – FAN/Program Port

Firmware
Firmware Upgrade – Supported

Size & Weight
Size – 49.0×39.5×34.7mm
Weight – 105g

Applications
Motors – SL BL Motors/SD BL Motors(only in SL mode)
Vehicles – 1/10thSCTs/Truck/Monster Truck
KV Rating/T Count – 2S LiPo:KV=6000;3S LiPo:KV=4000;4S LiPo:KV=3000(36XX Series of Motors
