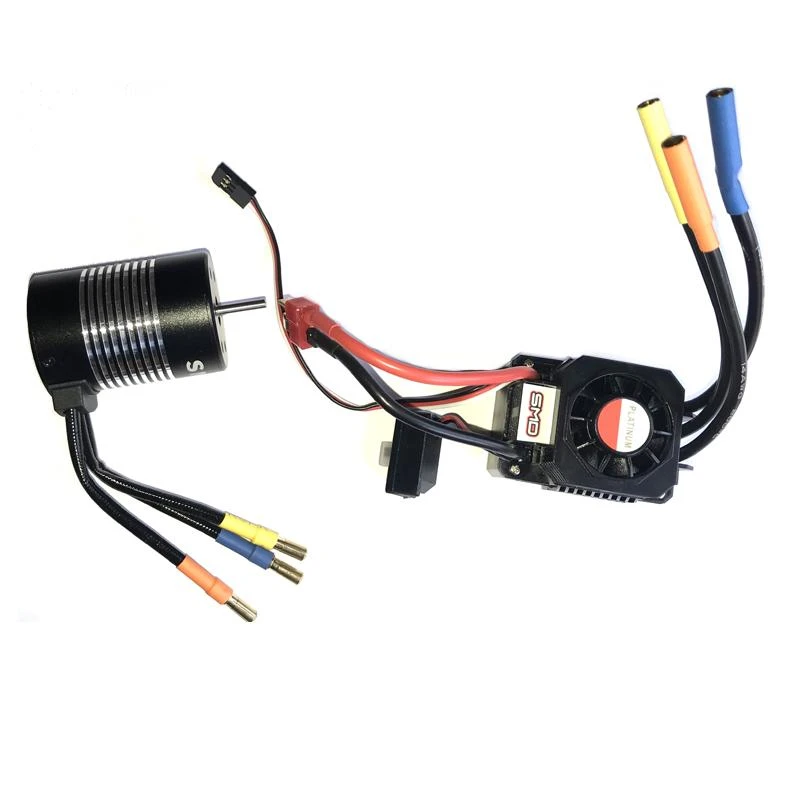

365035C-V2 – SMD Brushless Combo 1/10th Scale Sensorless 3500KV Motor + 60A ESC

The SMD Brushless Combo provides a useful upgrade to the performance of a 1/10th scale radio controlled model car for a reasonable price.

The Brushless Combo Set is primarily aimed for the owners of 1:10 Ready Set (RTR) vehicles or KIT vehicles that want to make a simple upgrade to the performance of the model. The set includes the brushless high-performance motor with aluminum housing and the matching speed controller. The system is designed without sensor cable, allowing easier installation and maintenance High power connectors are fitted as standard throughout.

Brushless Speed Controller Features.
Current – 60 amp Continuous 240 amp peak
BEC output – 5.8 volts 3amp (switch mode)
Dimensions – 51.5mm x 38.5mm x 38.5mm
Weight – 76g
Battery – 6-9 cells NIMH/ 2-3S Lipo
Motor limit – 2S 5600KV On Road/3900KV off road
Motor limit – 3S 3800KV On Road/ 2700KV off road
Voltage cut off – 0V, 2.7V, 2.9V, 3.1V (Programmable with optional programmer)
Start Mode – Medium, Soft, Strong (programmable with optional programmer)
Brake Force – 25% – 100% (Programmable with optional programmer)
Splash proof – (we do not recommend running any RC car submerged)

Motor Features
Motor size – 50mm x 36mm (540 size)
Motor Weight – 180 grams
Shaft diameter – 3.175
Shaft length – 14.5mm
Splash proof – (we do not recommend running any RC car submerged)
